2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability

Name: 2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability
Brand: KEMER
Price: 4 USD

Quality 2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability for sale

Condition : New

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : New Product 2020

Place of Origin : Zhejiang, China

Brand Name : KEMER

Warranty : 1 Year

Type : Rubber crawler track

Application : Cherry picker or fruit picker,drilling rigs

Color : Black or per to customer

Loading Capacity : 3 ton

Payload : 2.2 ton

OEM : Avaliable

After Warranty Service : Video technical support

After-sales Service Provided : Video technical support

Price : $4,700.00/sets 1-9 sets

MOQ : 1

Contact Now

Product Description

2018 Directly supplied Factory customized Rubber Crawler Track

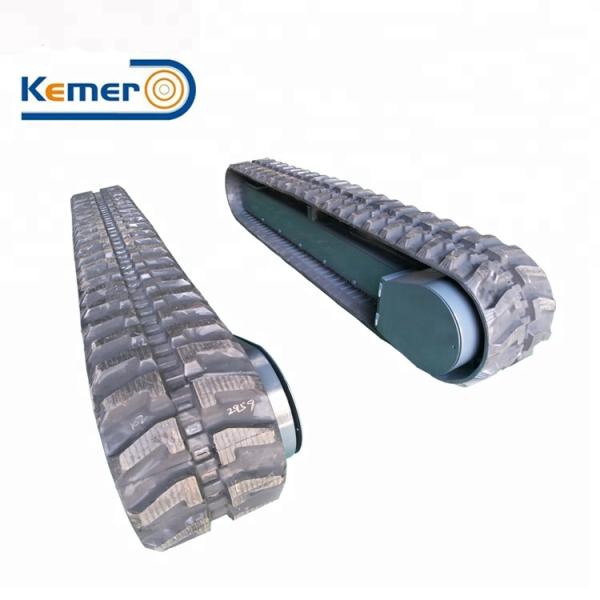

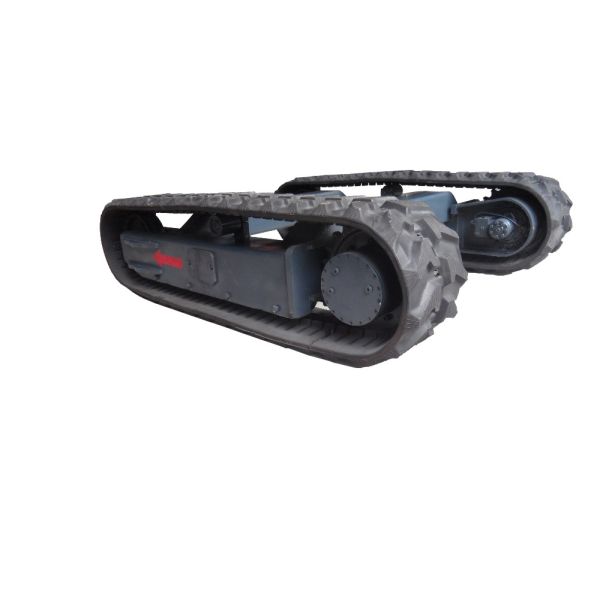

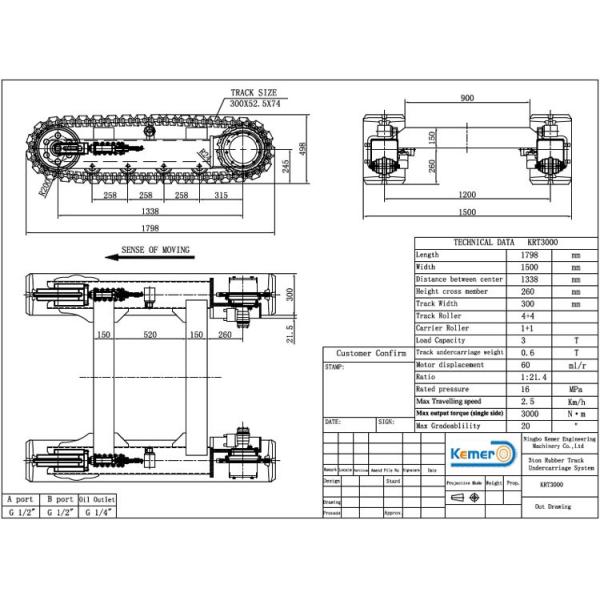

This model of rubber crawler track is KRT3000.

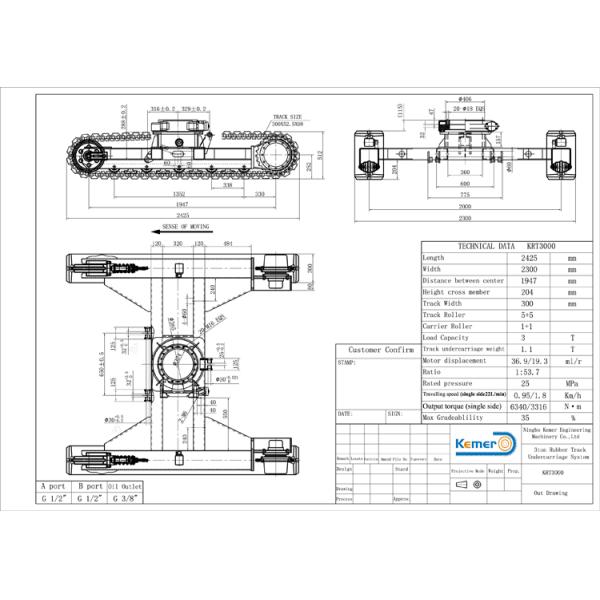

SPECIFICATIONS FOR 3 TON RUBBER CRAWLER TRACK
Dimension	Length	1826mm	2425
		Width	mm	800-2300
		Height	mm	495
Specification	Ratio		21.4
		Max Gradeablity	°	<=35
		Rated Pressure	Mpa	25
Technical Data	Travelling speed(single side 22L/min)	Km/h	0-3
		Output torque(single side)	N.m	3000
		Loading capacity	T	3

2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability

Main Features

1) The wider width can make the Rubber Crawler Track stable and reliable .

2) Equipped with doosan motor which can be easily changed when the motor do not work.

3)We use two speed motor on this model of rubber crawler track,when you transfer from one place to another it can travel in the fast speed,when it is working it can tavel in a low speed.This can best suit your needs.If you need a wider speed range,you can choose a variable displacement pump with fix displacement motor.That depends on your needs.

4) When the field is muddy,the rubber drawler track is a best solution.

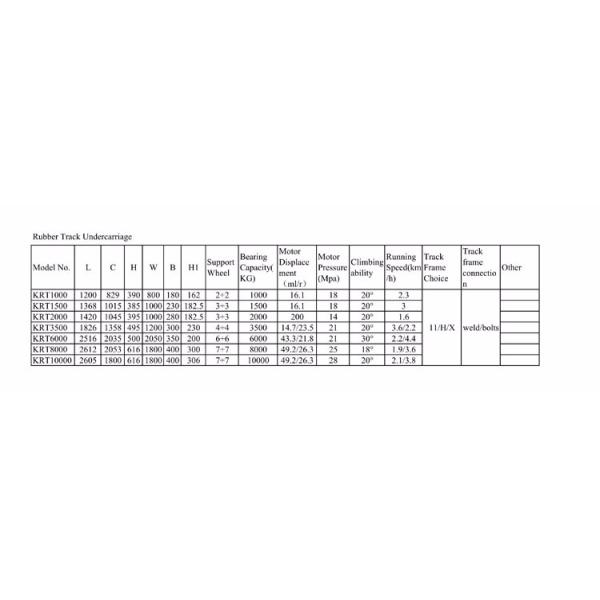

Other Models

Our Service

Pre-Sales Service

* Inquiry and design support. Choose the best solution.

* Sample testing support.

* View our Factory.

After-Sales Service

* Our products are all purchased by manufacturer of the whole machine so we will supply the suggestion about the

system specs.

* We can supply the spare parts in the warranty.

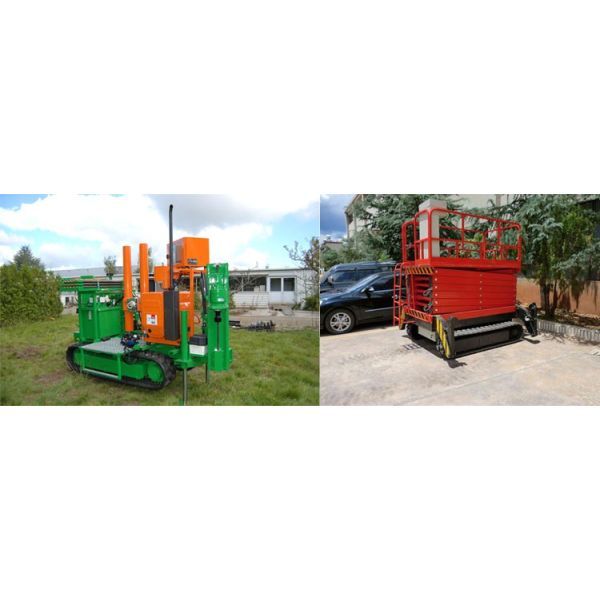

Application

This model (KRT3000)of rubber crawler track is used on fruit pick machine.

Packing & Delivery

Packaging
Size	1.8(L) * 2 (W) * 0.72 (D)
Weight	1.1 T
Packaging Details	Usually we pack the rubber crawler track by steel pallet and wrapping film.And the slew beaing is packed by wooden box.But as the width is 2300mm,so we did not use the steel pallet for this model of rubber crawler track.If you have special needs about rubber crawer track,we will pack it according to customers special request.

Packaging
Size	0.7 (L) * 0.7(W) * 0.8 (D)
Weight	800KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too high,we will use pe film for packing or pack it according to customers special request.

KRT1500 1.5 ton rubber cralwler track undercarriage

91.8% Response Rate

7 ton two sides rubber crawler track undercarriage

91.8% Response Rate

5 ton rubber crawler track undercarriage

91.8% Response Rate

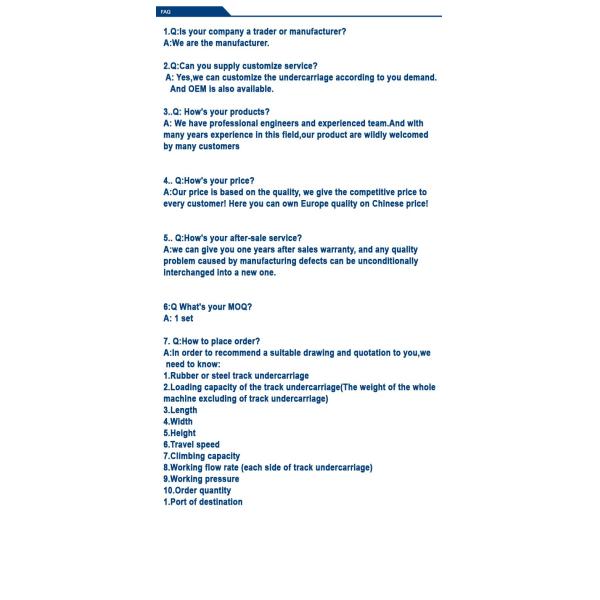

FAQ
